Ray Tracing Part VI



This week I will implement BRDF for my ray tracer. BRDF defines how light is reflected at an opaque surface.

Now We have seven new models.

• Blinn-Phong
• Modified Blinn-Phong
• Normalized Modified Blinn-Phong
• Phong
• Modified Phong
• Normalized Modified Phong
• Torrance-Sparrow

Summary :

To implement this part I added new section to materials and shading class.

Each material has a brdf struct if it has brdf feature. In brdf structure we have brdf type and exponent.

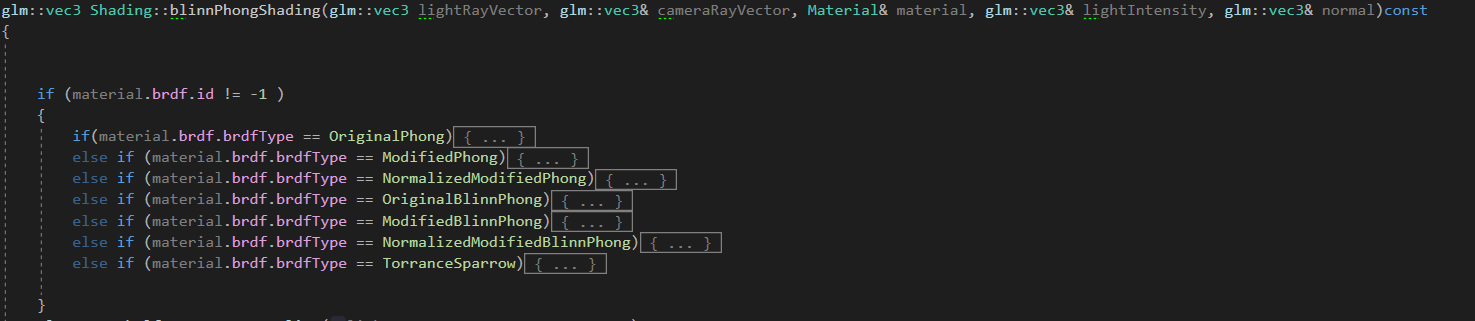

In previous parts we only have blinn phong shading. We calculate half vector and find the color. Now we have different formulas for each algorithm. When we call blinn phong, I calculate color according to enum type.

In some brdf types we need to change diffuse shading.

Each model has different approach. Each of them we can find a final equation.

Blinn-Phong :k_d+ k_scosp(αr ) /  cos θi

Modied Blinn-Phong : k_d+ k_scosp(αr )

Normalized Modified Blinn-Phong : k_d / π + k_s * cosp(α) * (p+8) / 8π

Phong : k_d+ k_s *cosp(β) /  cos θi

Modified Phong: k_d+ k_s *cosp(β)

Normalized Modified Phong:  k_d/ π +  k_s*cosp(β) * (p+2) / 2π

Torrance-Sparrow: k_d / π + k_s * D(α) * F(Φ) * G(wi,wo) / 4cos θicos(Φ)

Let's start with BlinnPhong

0.612s



Modified Blinn-Phong

0.655s

Normalized Modified Blinn-Phong

0.552s

Phong

0.684s

Modified Phong:



0.6442s

Normalized Modified Phong:

0.652s

Torrance-Sparrow:

0.712s



  122s

  126s
